Product Overview

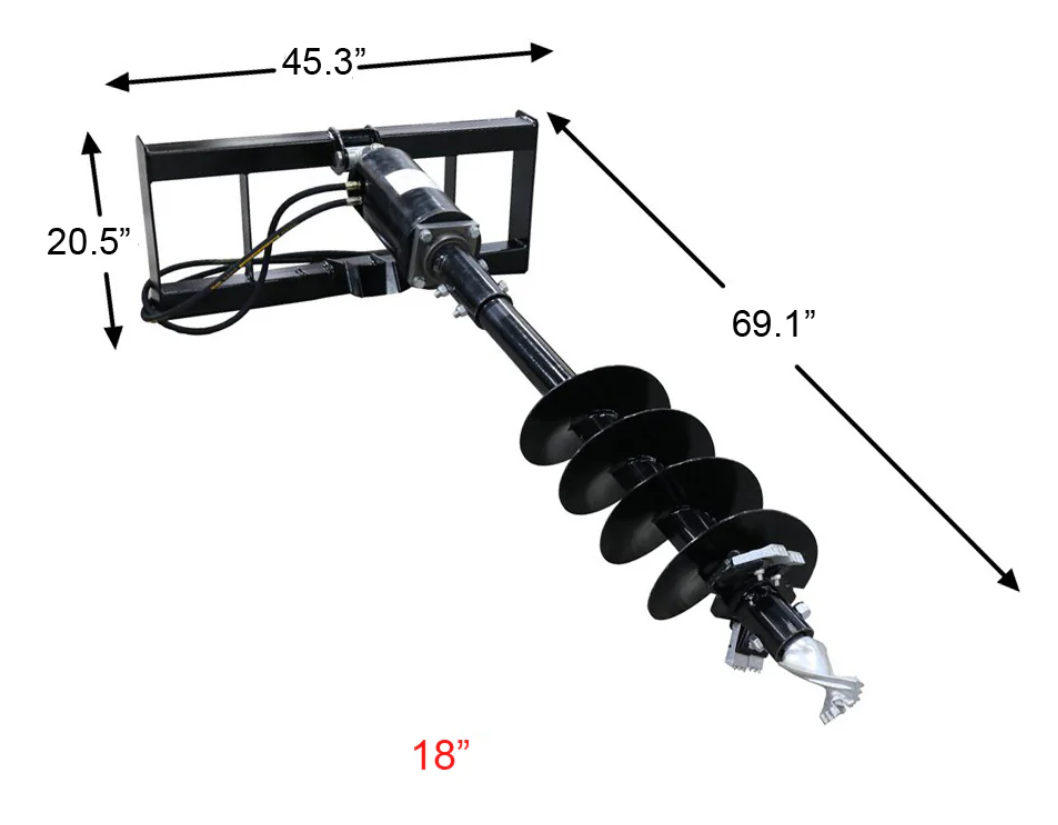

18" diameter compact drive & Auger for skid steer loader. Takes the effort out of digging the right sized hole for the task at hand. A hydraulic motor drives the auger through a sealed planetary gear reduction. The heavy duty all gear design of our planetary drives gives these units a long life with minimal maintenance and service costs.

Features:

- Perfect for digging holes to plant trees, install fence posts & more
- Fits Inner Width 44.9" Universal Skid Steer Quick Attach
- Direct Drive Through Planetary Gear
- Mounting Plate, Hoses and Couplings Included

Specifications:

·         Auger Diameter: 18"

·         Hydraulic Flow Required: 2 0GPM

·         Operating Pressure:2176 psi

·         Rated Output Torque: 950 N.m

·         Max Output Torque: 2500 N.m

·          Max Input Speed: 1000 rpm

·         Unit Weight: 395 lb

·         Blade Thickness: 0.15”

·         Shaft Diameter: 3.3”

·         Shaft Length: 45”

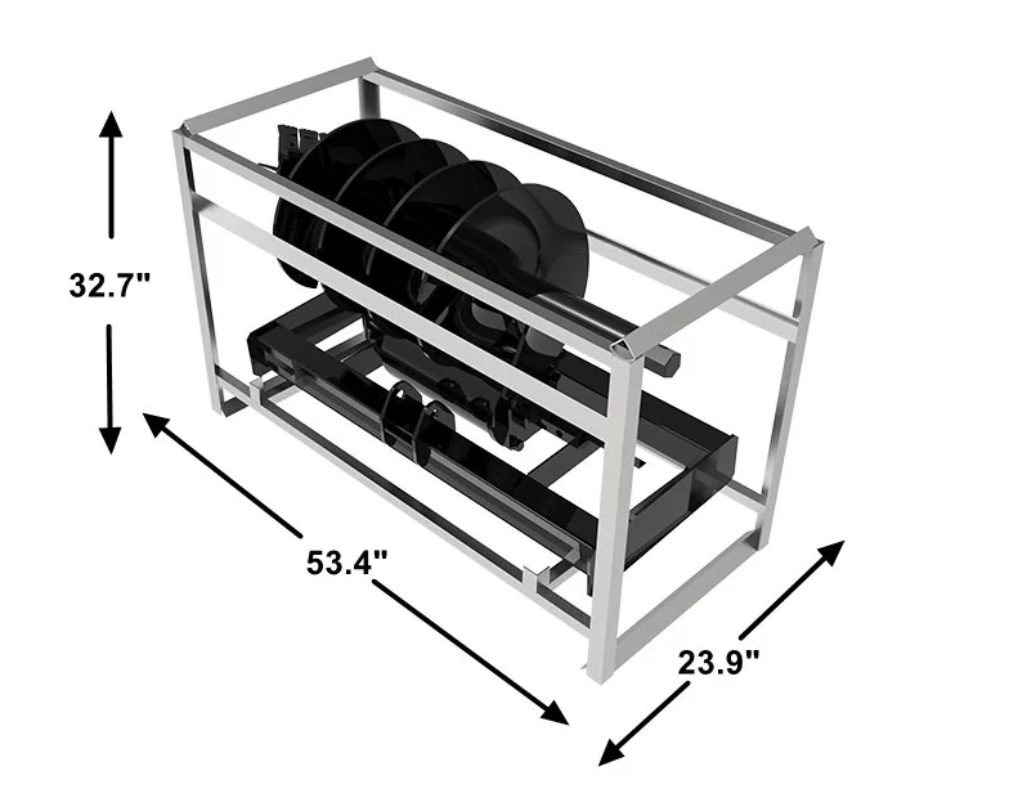

·         Package Size: 51.2 x 23.5 x 34.6 inch

·         Package Weight: 454 lb
