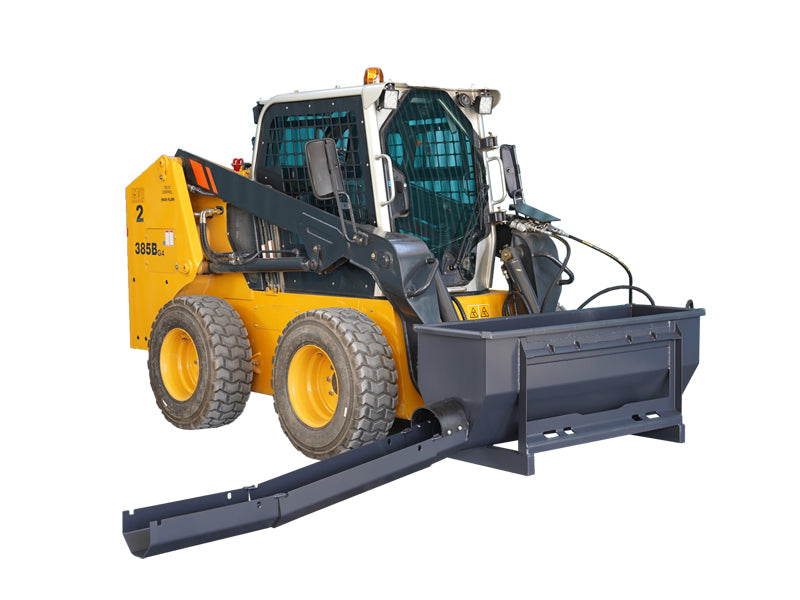

Skid Steer Auger Bucket Transport/Mix/Dispense Concrete, Wildlife Feed, and Agricultural Grains

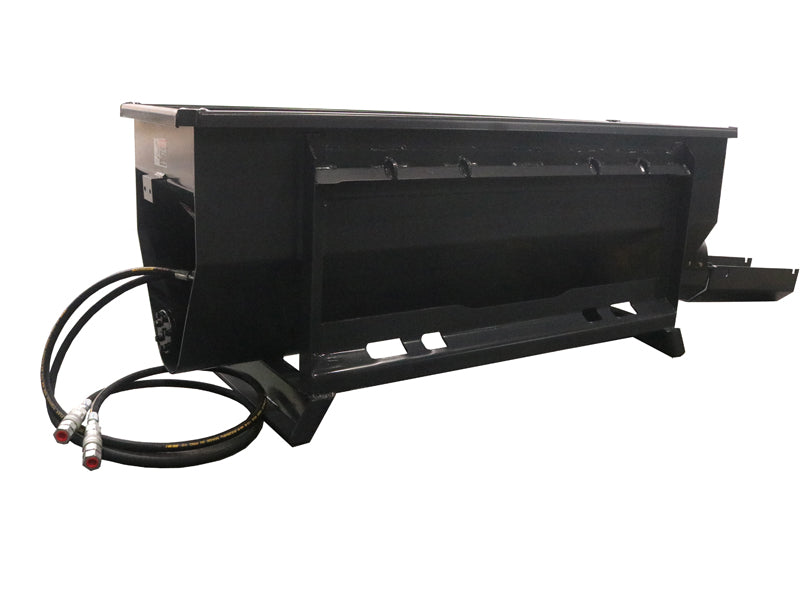

The Auger Bucket has a ½ yard capacity (13.5 cubic feet) an optional hopper extension can be added to increase the capacity to ¾ yard (20.25 cubic feet). Rubber-flighted design acts as a seal to limit materials leaking out of the bucket. Skid-steer quick attach mount on both sides for left or right discharge. All buckets come standard with one 2’ and one 3’ chute and a 7’ hose kit with flat faced couplers and motor fittings.

VERSATILE

Skid-Steer------Quick attach mount on both sides for left or right discharge.

STANDARDS

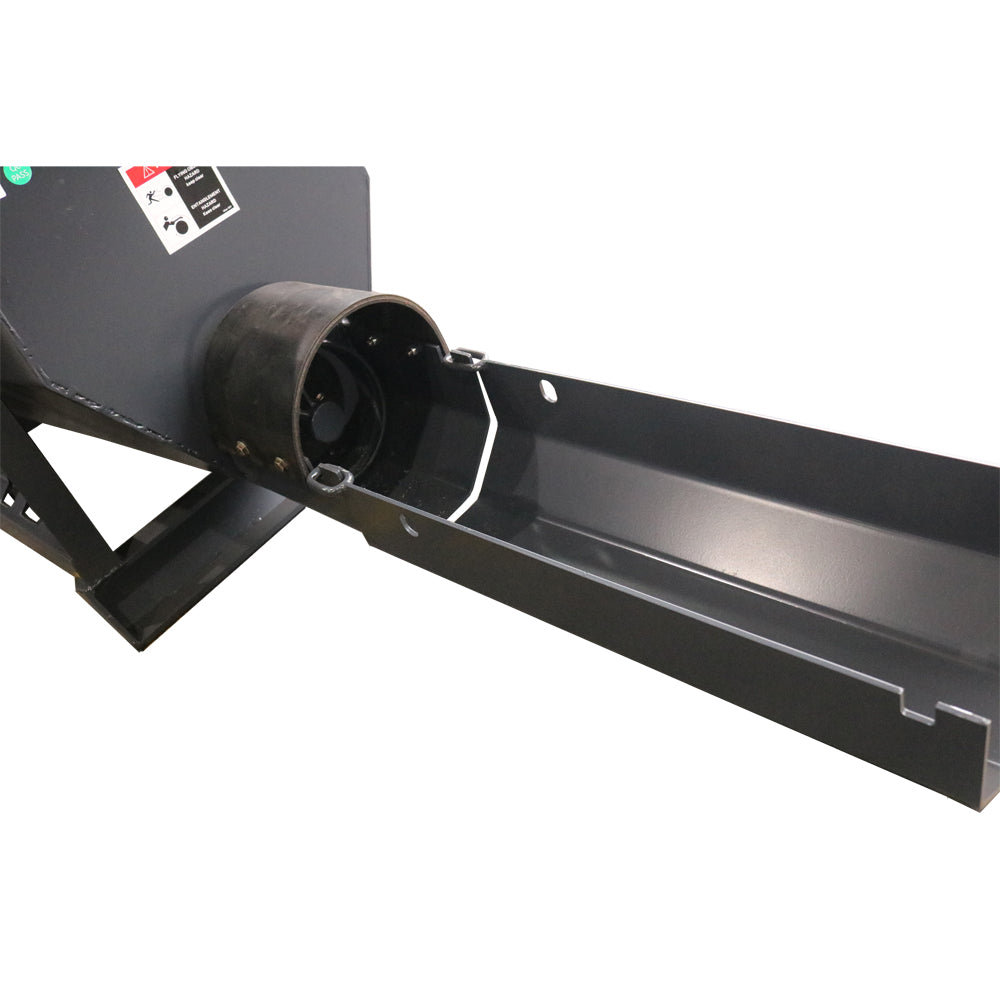

All buckets come standard with one 2' and one 3' chute and a 7' hose kit with flat faced couplers and motor fittings.

1/2 YARD CAPACITY

The Auger Bucket has a 1/2 yard capacity (13.5 cubic feet) and optional hopper extension can be added to increase the capacity to 3/4 yard (20.25 cubic feet ).

REACH

Reach difficult areas for footings, slabs, sidewalks, fence posts, sign posts, deck posts, piers,etc.

RUBBER-FLIGHTED

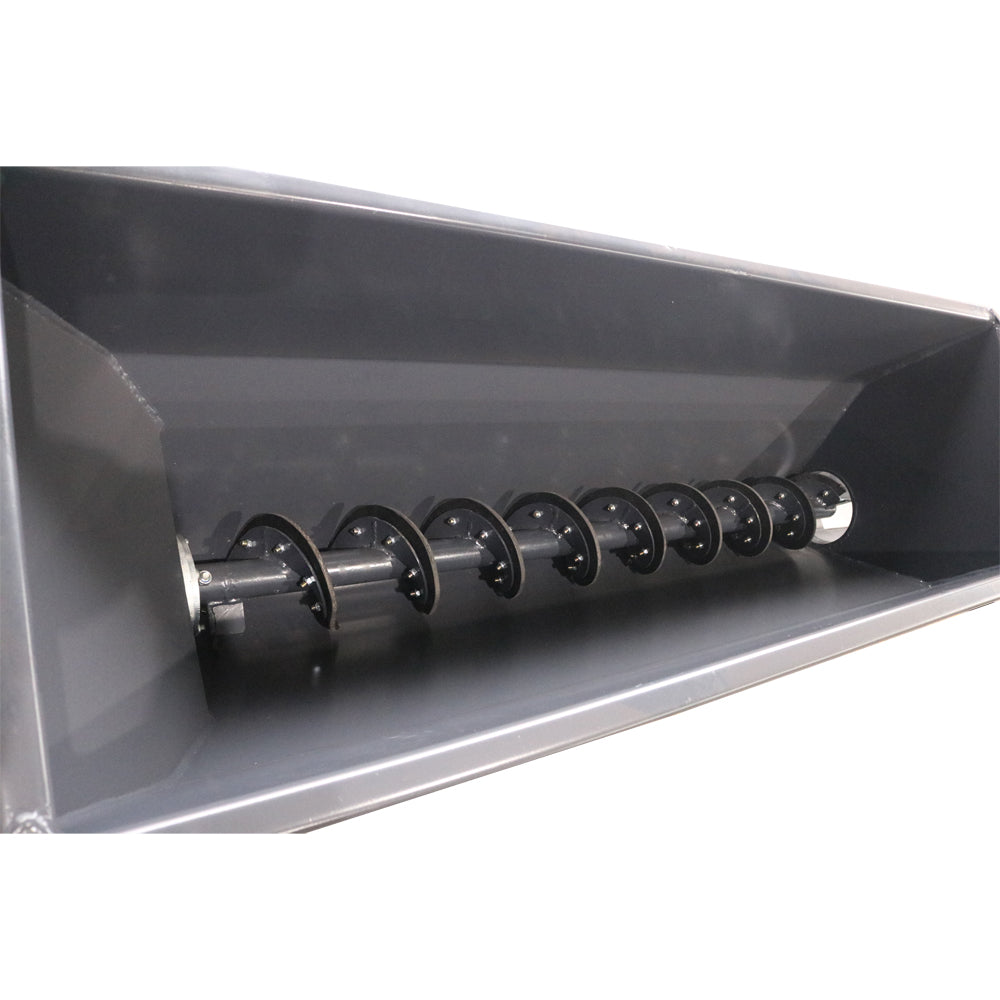

Rubber-flighted design acts as a seal to limit materials leaking out of the bucket.

Specifications:

Capacity: 1/2 yd (13.5 cubic ft); up to 3/4 yard (20.25 cubic ft) with optional hopper extension.
Hydraulic Requirements:12 GPM / 2,000 PSI
Mounting Options: Skid-Steer
Overall Height (A) (inches): 27"
Overall Width (B) (inches): 21-1/2"
Overall Length (C) (inches): 74-1/2"
Overall Bucket Length (D) (inches): 68-1/2"
Weight: 380 lb
Auger Length (inches): 61-1/2"
Auger Diameter without Rubber (inches): 4"
Auger Diameter with Rubber (inches): 6-1/2"
Auger Flighting Spacing (inches): 4"

NOTE:  Rubber-flighted auger models for wet materials. PN 11063 steel auger models must be used for dry materials, sand and asphalt.
