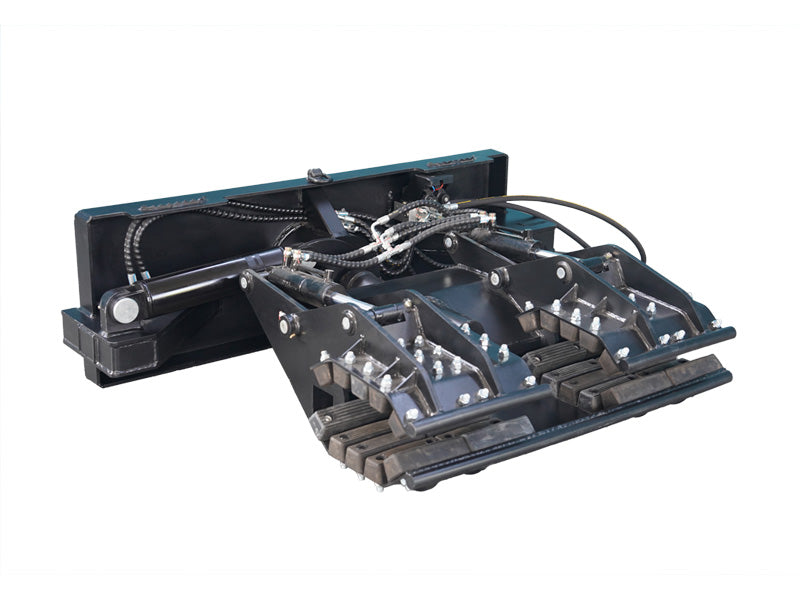

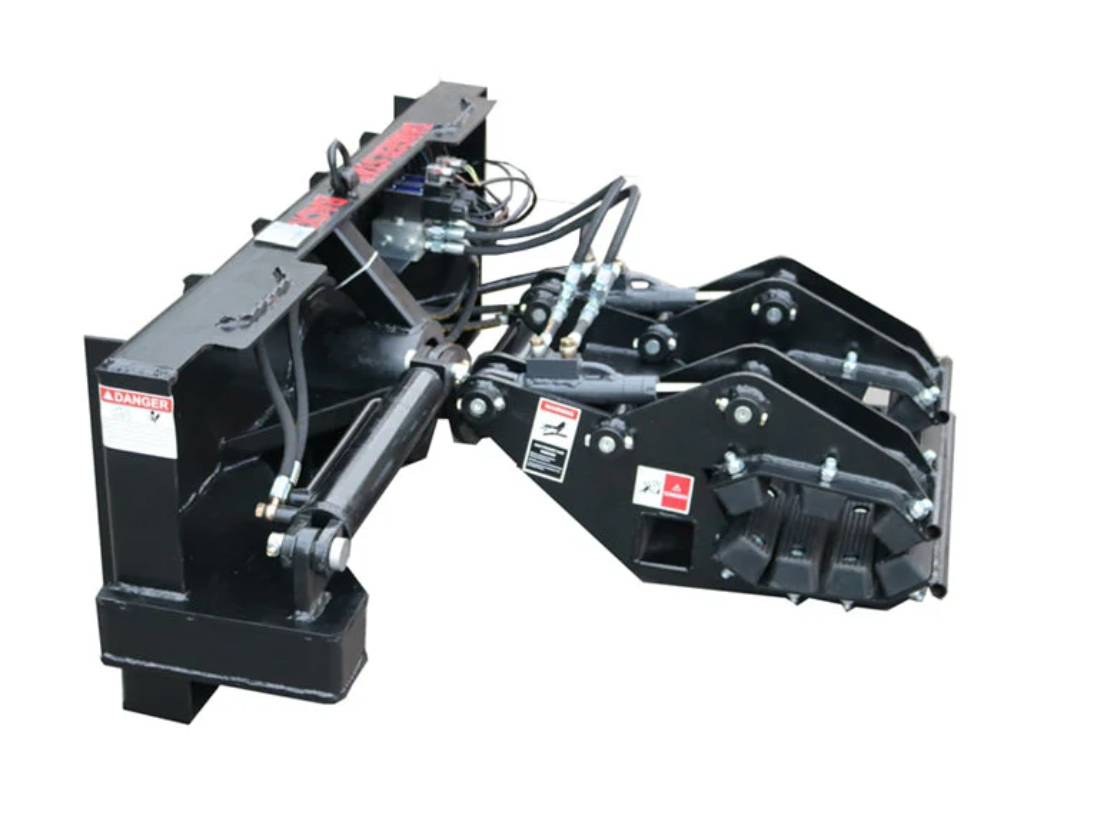

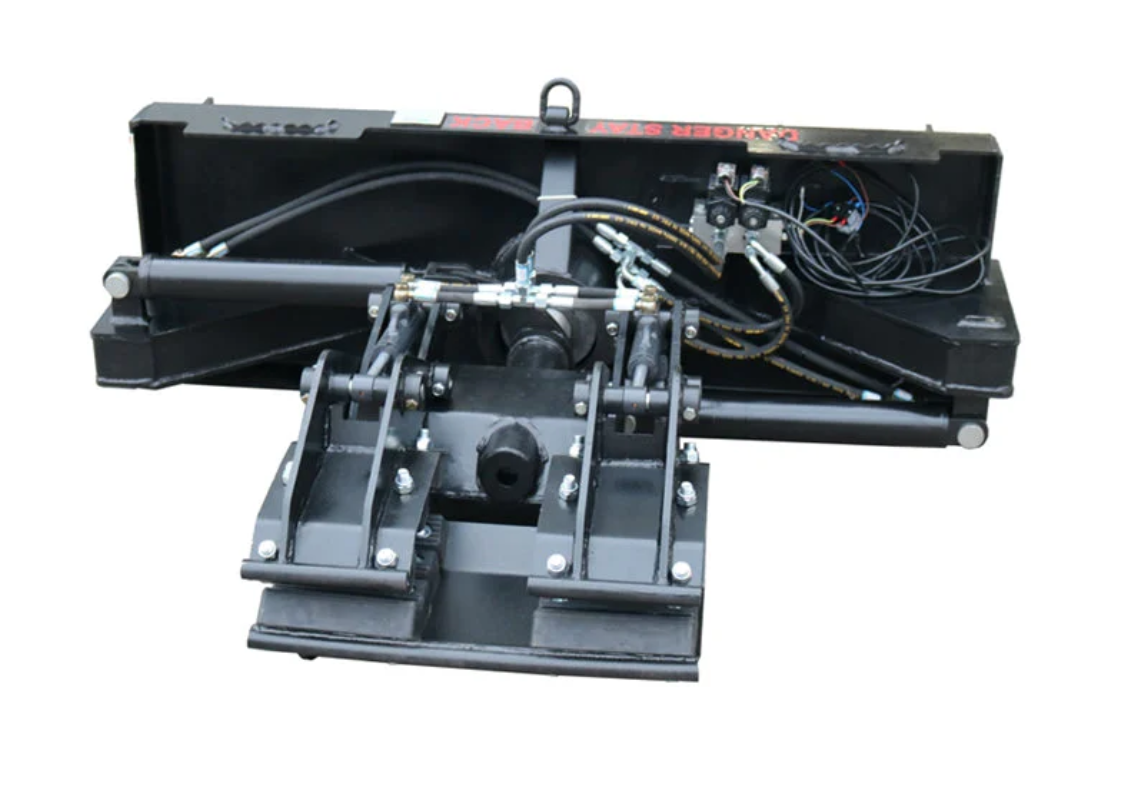

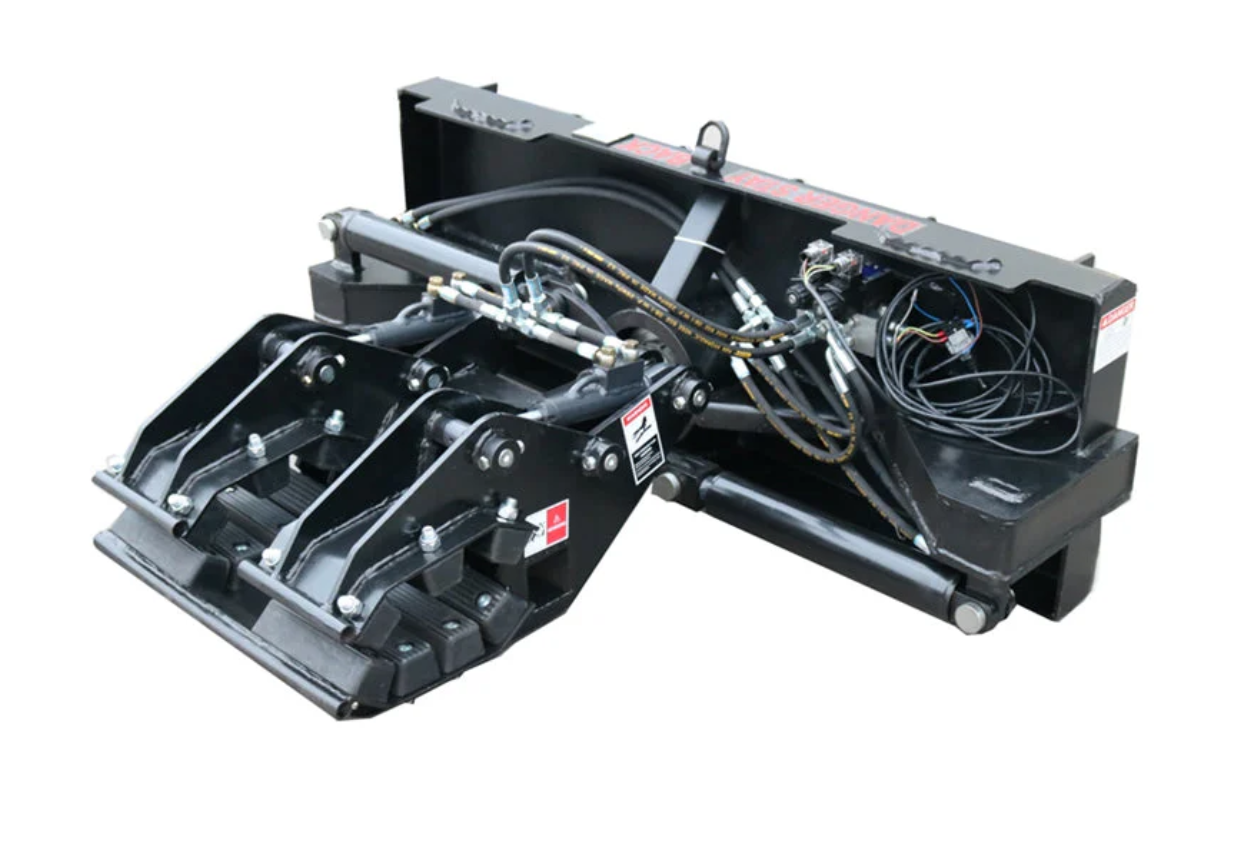

Double Cylinder Pole Setter

The Double Cylinder Pole Claw is designed to handle poles up to 32 feet long and up to 1190 lb.

- With the Double Cylinder Pole Claw, the operator can set or take down light poles, solar panels, fencing or pole barns with speed and precision.

LESS LABOR ! MORE PRODUCTIVITY!

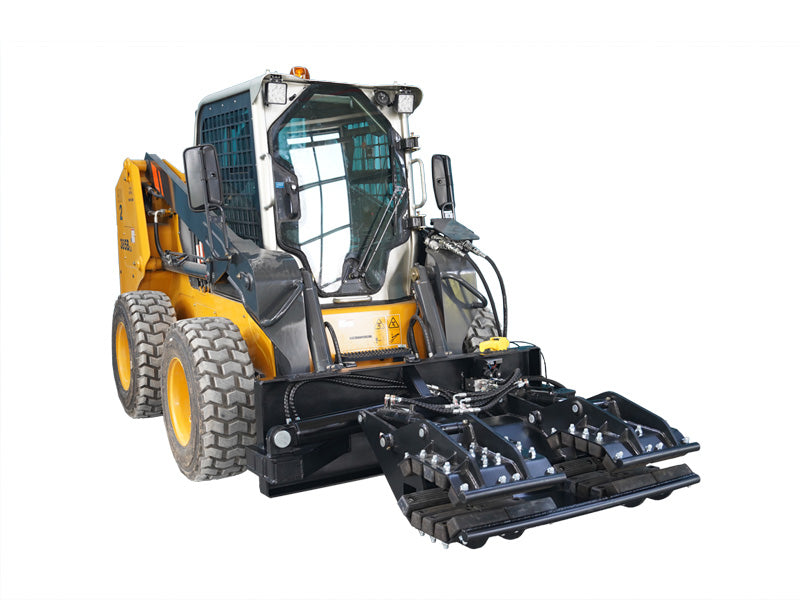

- From the control cab of the Skid Steer, Telehandler or Excavator the operator can pick a pole up off the ground or off the back of a trailer, and set it with an extreme precision.

- The Double Pole Claw eliminates the need for cranes, slings, or extra man hours.

- The rubber lining prevents damage, and the second sequencing claw allows for precision setting of light standards and pole buildings.

FEATURES

• Fits all Skid Steers equipped with the Universal Quick’Tach.

• Can be modified to go on an Excavator and Telehandler

• Sold with the DOUBLE CYLINDER ROTATING BASE or the FIXED NON ROTATING BASE

• Designed with 2 independent jaws that open and close one after another for pole security and operator safety.

• Mounted with rubber lining to protect the pole.

• The clamping is activated by two 2’’ X 6’’ cylinders and can be adjusted to regulate clamp pressure.

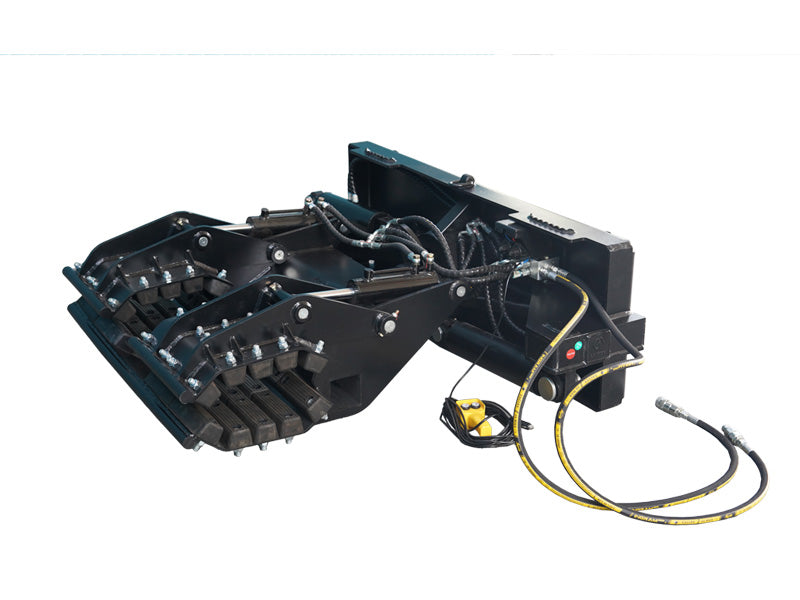

• Comes complete with wiring harness, spring hose mount and flush faced couplers.

• Opens to 14 inches, closes down to 3 inches (0 inches with optional inserts)

• Assures quick and easy setting of Metal, Wood or Plastic Poles.

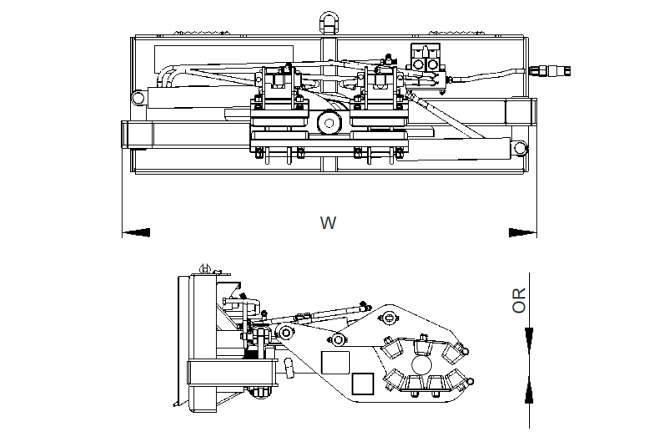

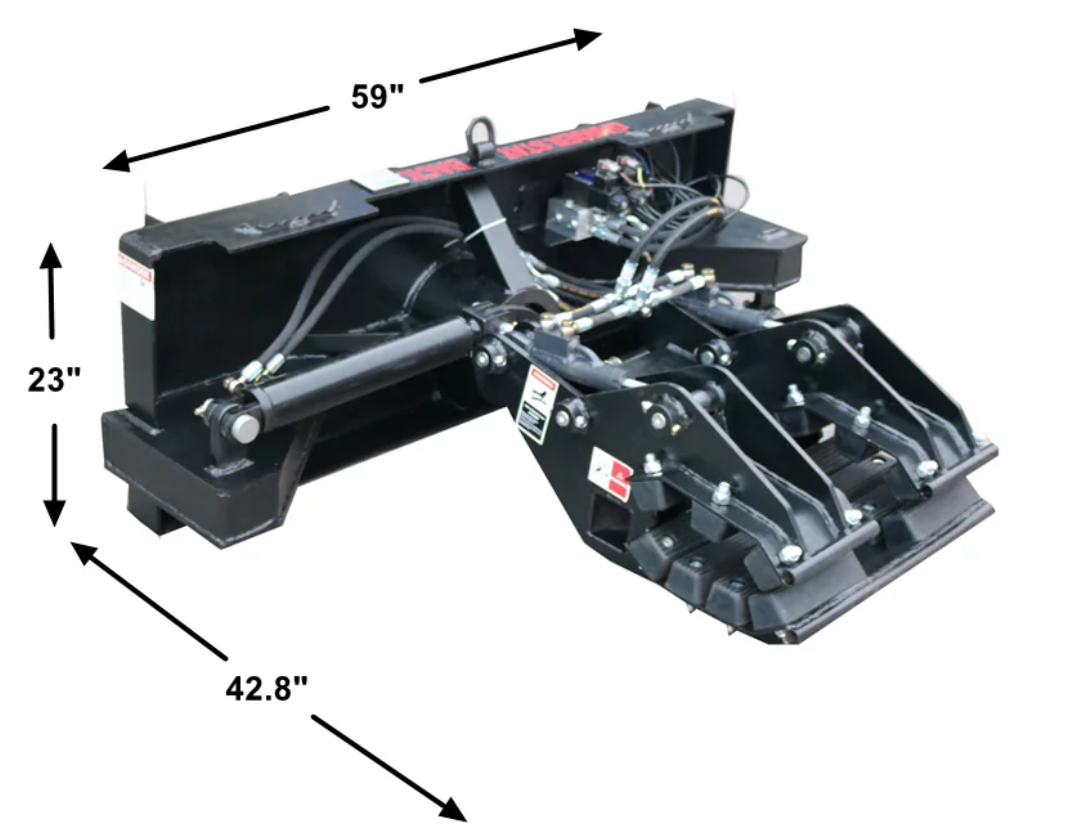

•Width(W): 59 inch
•Weight: 719 lb

The Double Pole Claw is currently being used in the following industries.

• Solar Panel Installation

• Residential Wind Tower Installation

• Pole Barns or Pole Buildings

• Fencing

• Foundation Industry

• Electrical and Plumbing

• Mining Industry

• Oil Fields

• Farming

• Pilings and Shoring

• Forestry

• Parks and Recreations

• Governmenta
