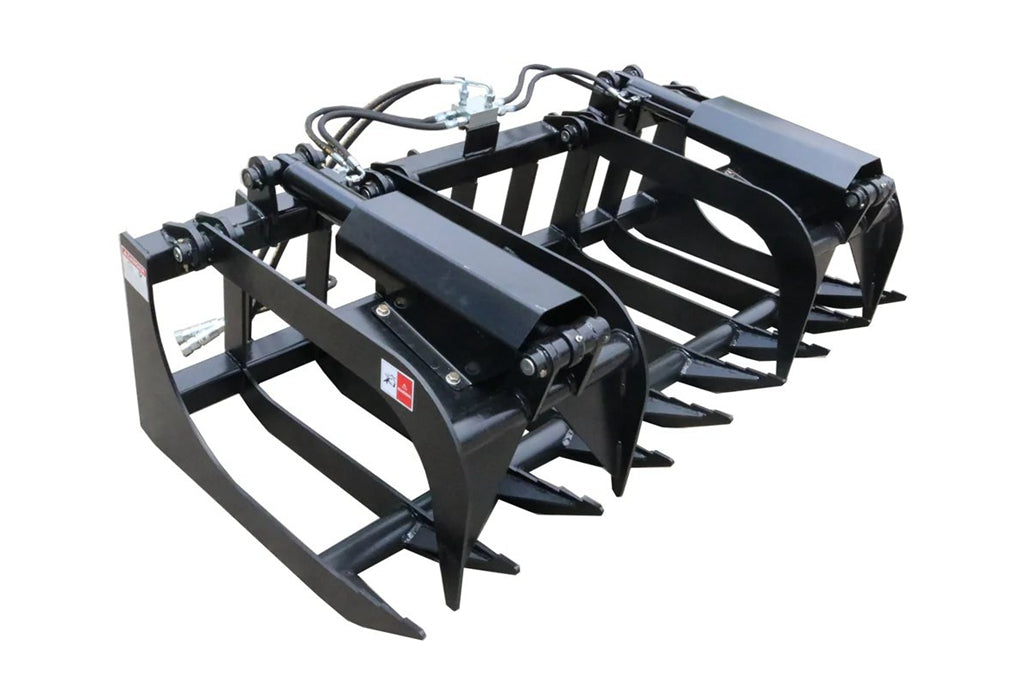

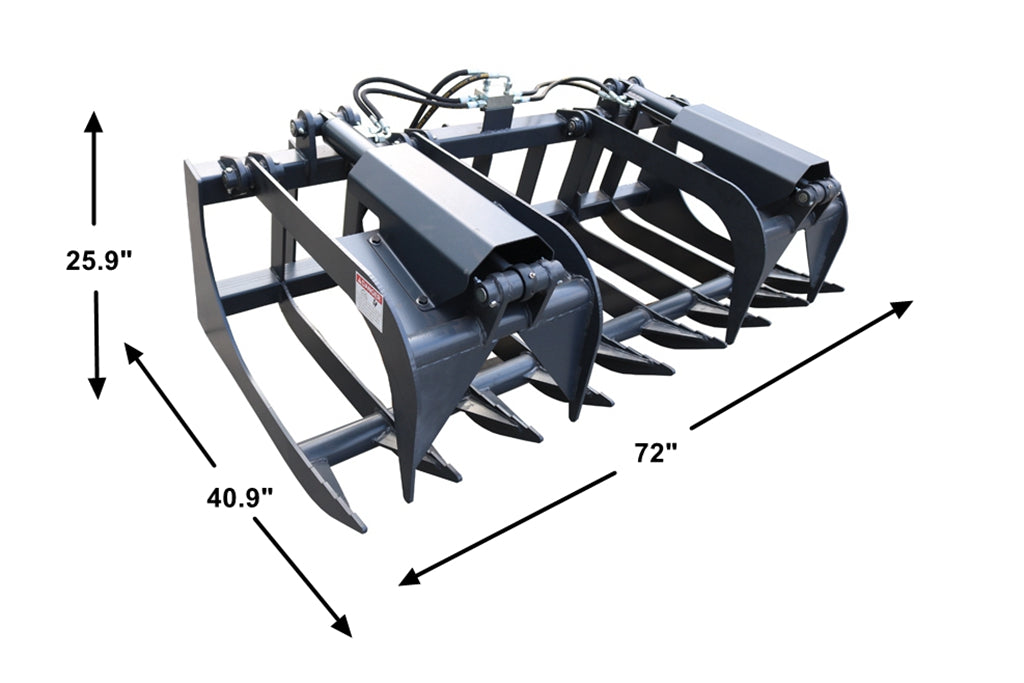

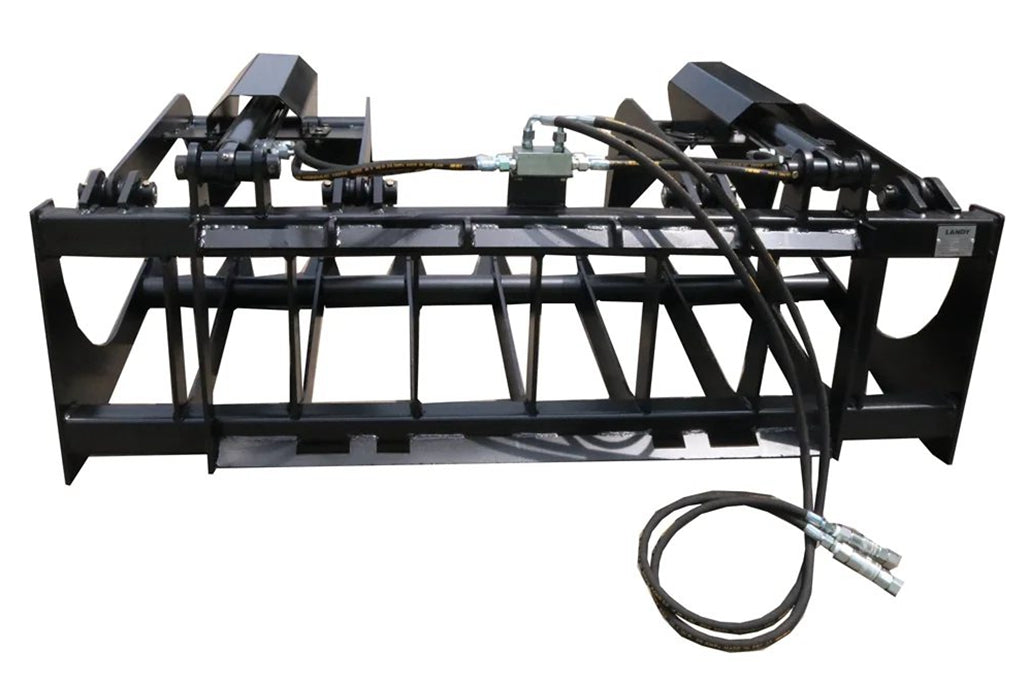

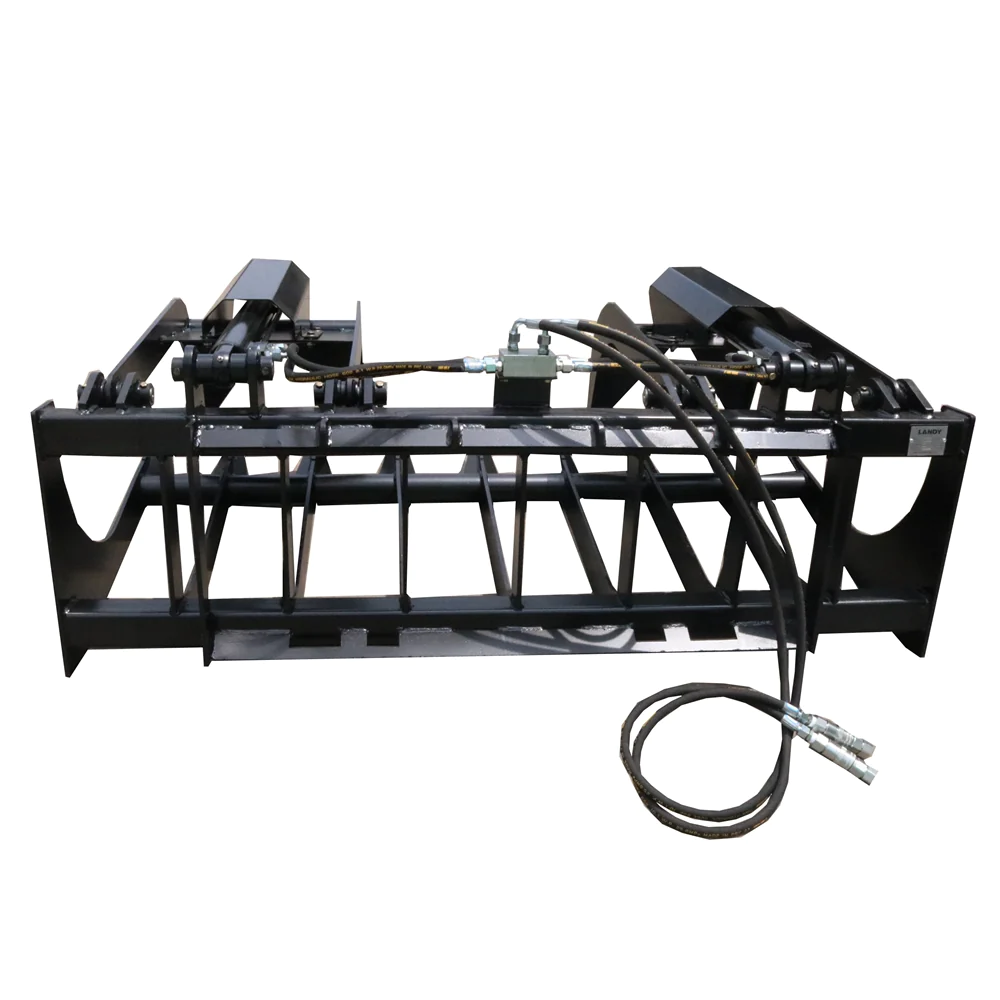

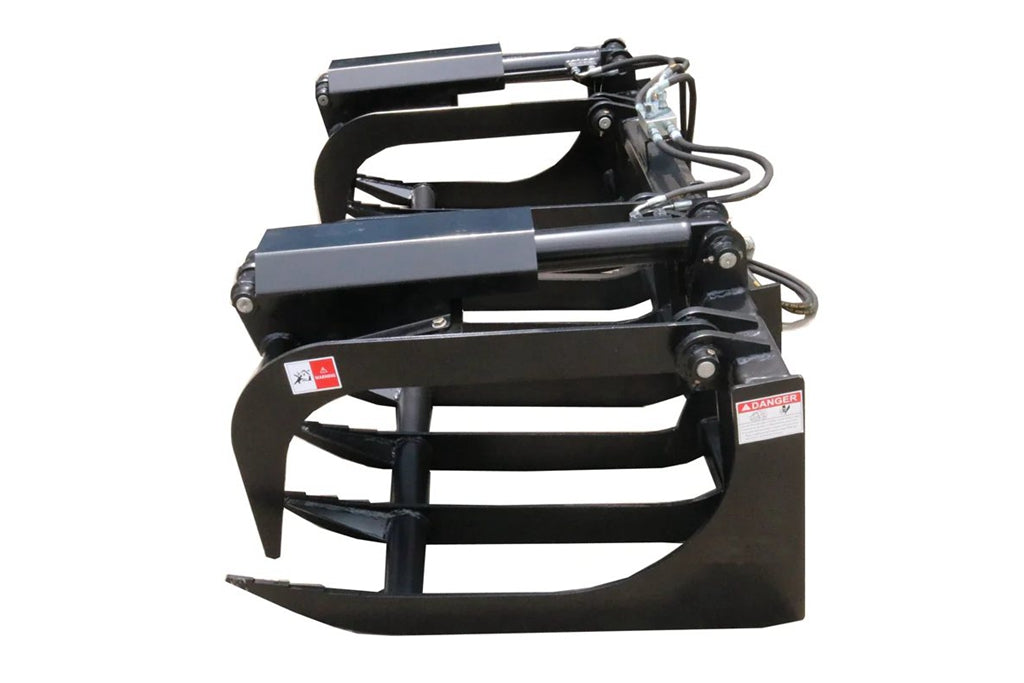

Skid Steer 72" Dual Cylinders Rock Grapple Bucket with Teeth
Skid Steer 72" Dual Cylinders Rock Grapple Bucket with Teeth
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Shipping calculated at checkout.
The Root Grapple Bucket is ideal for picking up and moving small logs, brush, debris, and other odd shaped or hard to lift material.
- It's efficient light weight design will not tax your loader's power allowing you to work faster.
- The independent grapples make it easy to move difficult and uneven loads.
- The serrated leading edge provides exceptional grip and can easily tear through small roots and brush.
- This grapple is not intended for heavier duty, commercial grade work to include digging or pulling trees, rocks, roots from the ground.
Features:
- Universal quick attach mount
- Protective canvas sleeve keeps the hydraulic hoses from getting pinched when in use
- Greasable pins and bushings
- Hoses and flat faced couplers are included
- Twin cylinders
Specification:
- Opening Height: 47-5/8"
- Bucket Angle: 80.5°
- Teeth Thickness: 7/16"
- Pressure: 20 MPA
- Oil Flow: 60 LPM
|
Type |
Width(W)/in |
Opening Range(OR)/mm |
Teeth Length(Lt)/in |
Teeth Thickness(Tt)/in |
Weight/lb |
|
S-RG1830(72IN)-MP1220 |
72" |
15"-32" |
38-3/4" |
7/16" |
600 |
|
S-RG2130(84IN)-MP1220 |
84" |
15"-32" |
38-3/4" |
7/16" |
662 |
