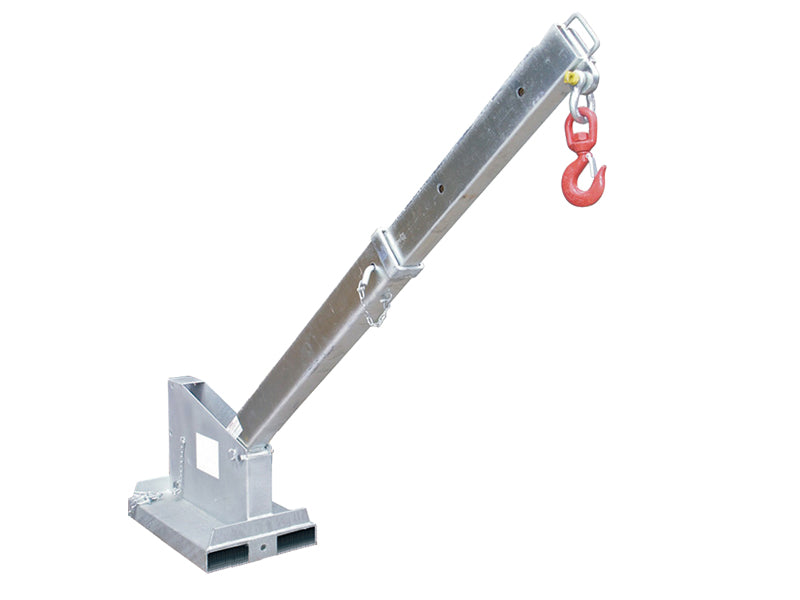

Forklift Crane Jib Attachment Tilting Jib 4.5T

One of the most versatile jib attachments in our range and allows for additional height of up to 2.23m.

- With a 3.53 metre reach when fully extended. This slip-on attachment is held to the forklift by a safety chain.

- The overall jib length when closed is 2.1 metres.

- Zinc plated finish.

Specifications

• Code: 03.01.04.0023

• Safe Working Load (SWL) 4500kg Max.

• Unit Weight 190kg

• Load Centre 770mm

• Pocket Size 185 x 68mm

• Pocket Centres 322 mm

• Horizontal C of G 1080mm

• Vertical C of G 345mm

• Dimension(LWH)/mm：2097×522×646
