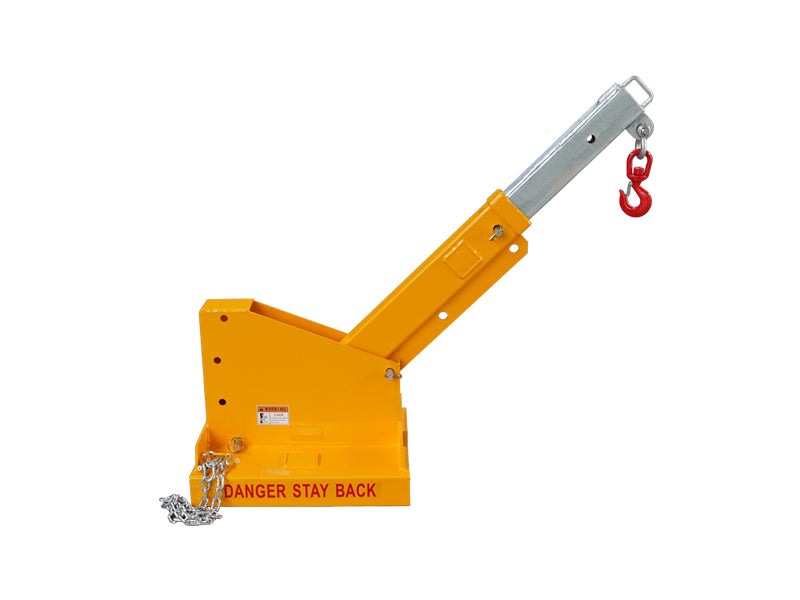

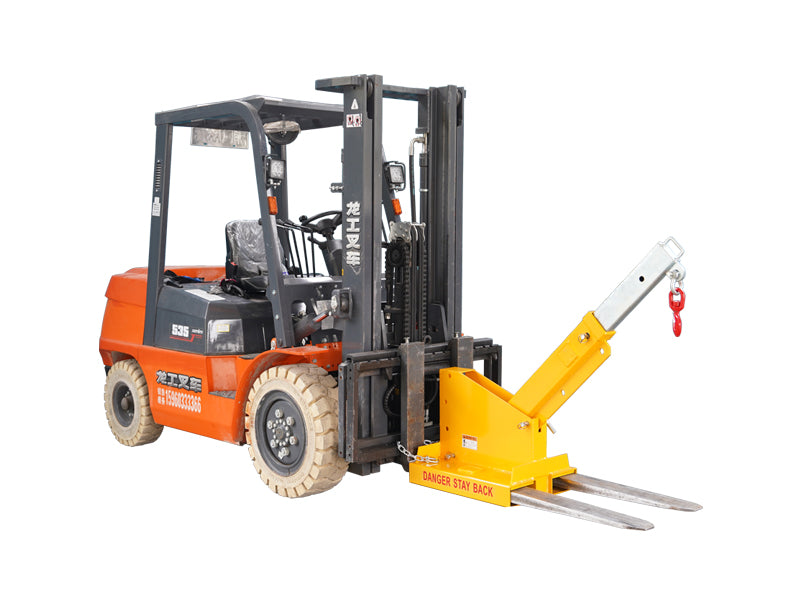

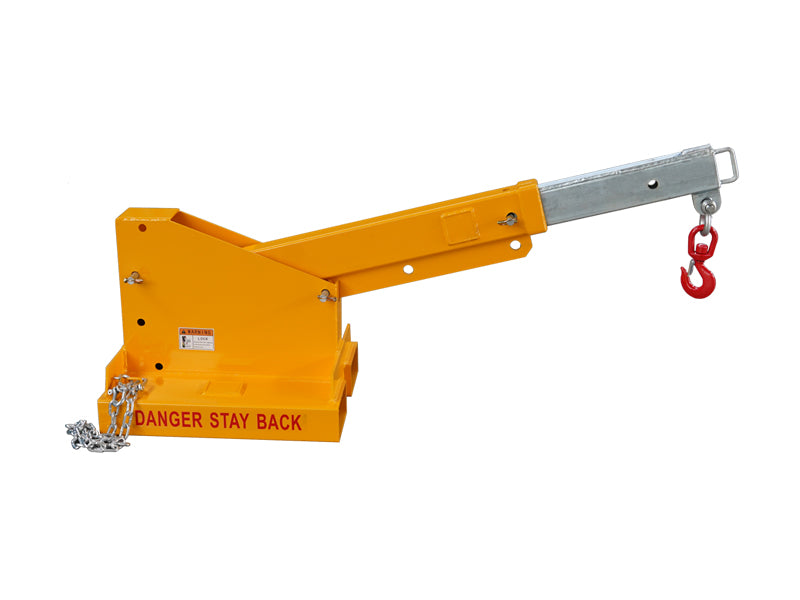

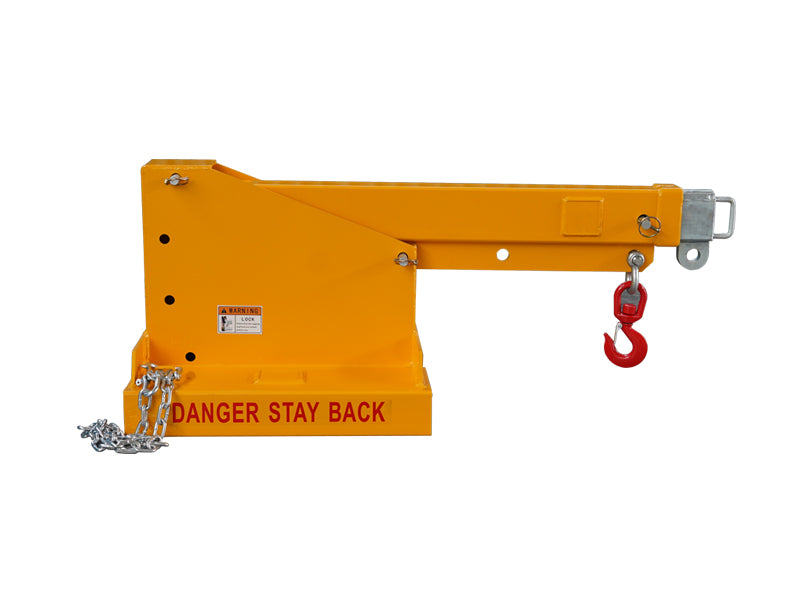

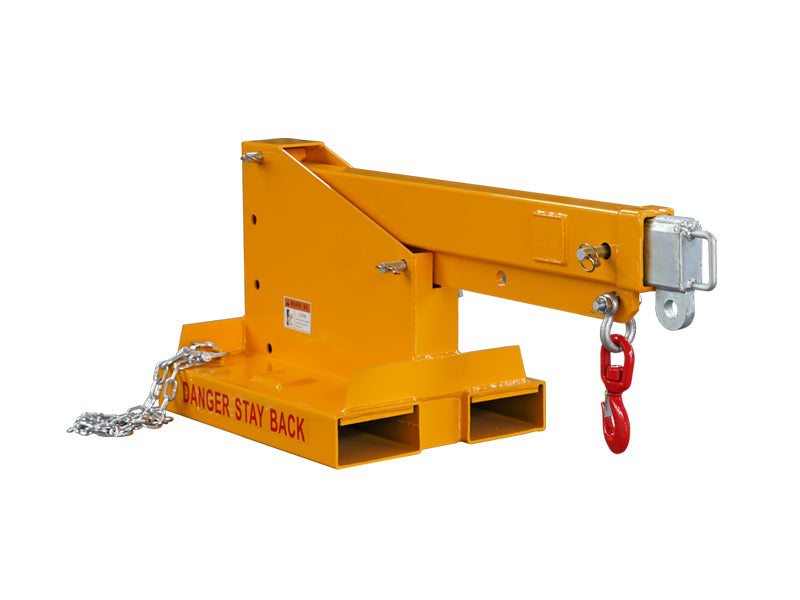

Forklift Telescoping Jib Boom Crane Tilt Jib

Type F-TJS2.5 Tilt Jib allows for additional height, compensating for length of the hook and  slings when lifting.

- The jib boom can be set at 3 angled positions as well as level.

- Jib also offers 5 different hook positions, with a 2 metre maximum reach.

- Zinc plated finish.

Specifications

• Safe Working Load (SWL) 2500kg Max.

• Unit Weight 130kg

• Load Centre 825mm

• Pocket Size 165 x 65mm

• Pocket Centres 337 mm

• Horizontal C of G 650mm

• Vertical C of G 300mm

• Dimension(LWH)/mm：1350×526×556
