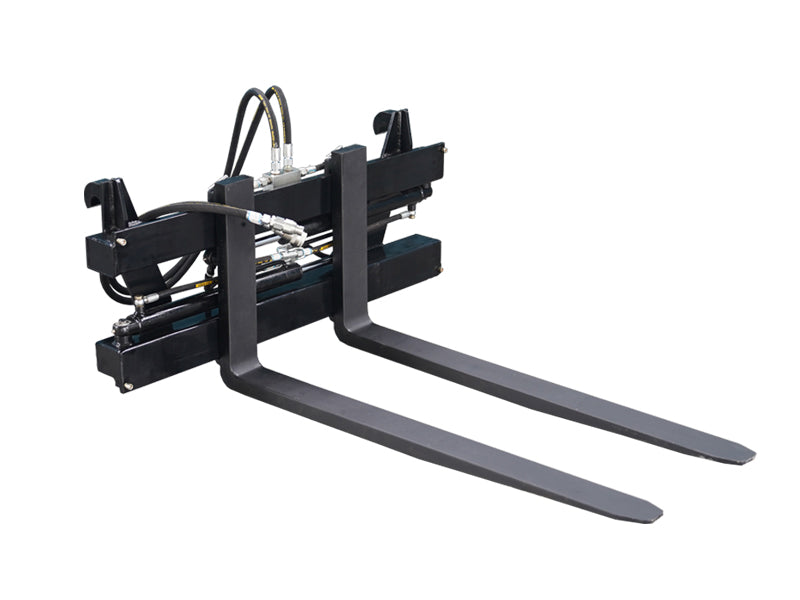

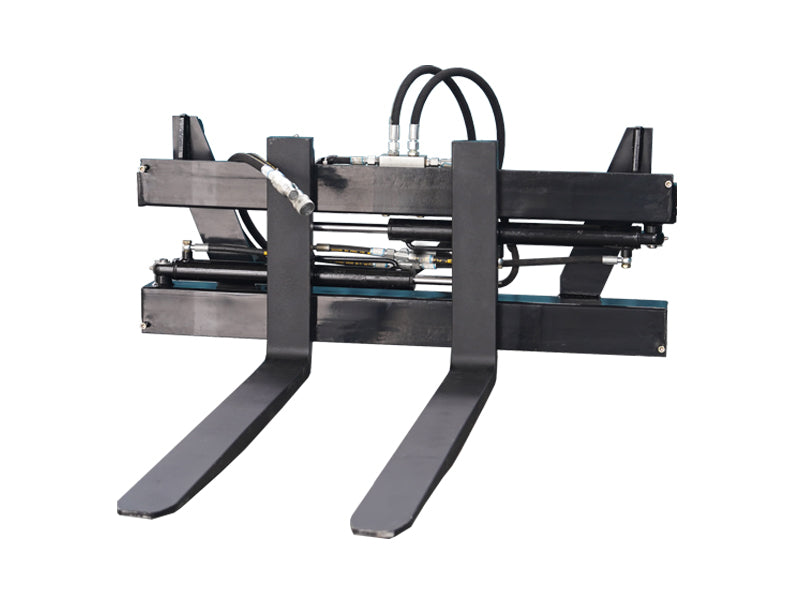

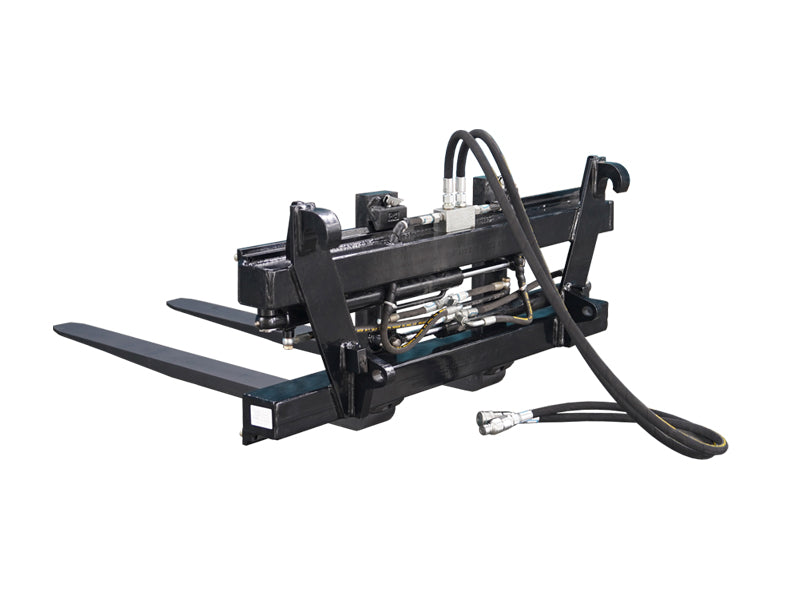

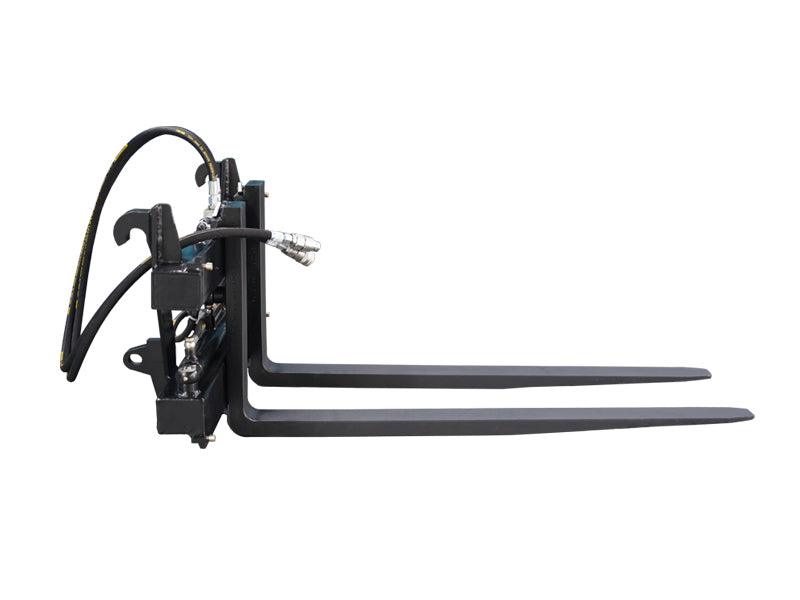

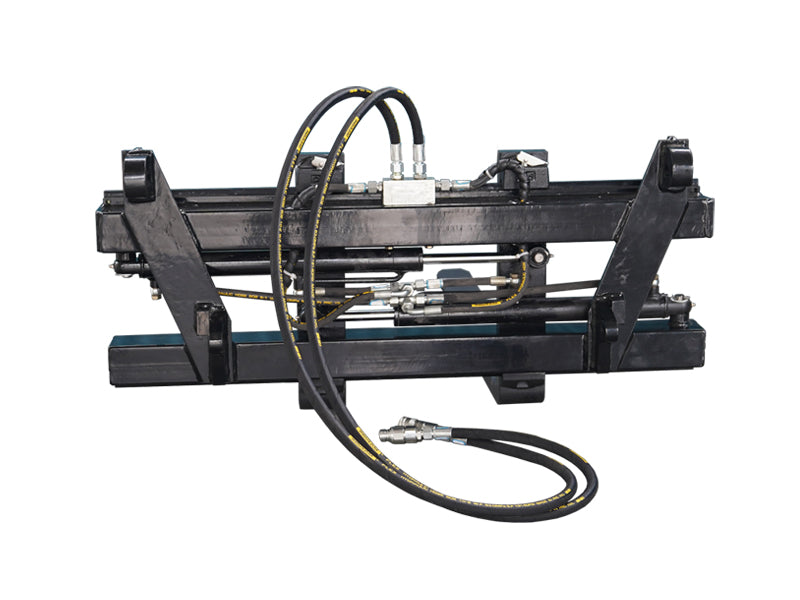

Hydraulic Adjust Pallet Forks Frame for Tractor Front Loader
Hydraulic Adjust Pallet Forks Frame for Tractor Front Loader
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Shipping calculated at checkout.
New Type CTJ Hydraulic Fork Frames that meet high standards for safety and quality.
The forks are moved hydraulically as standard, also side shifting when add the oil valve control as option order. Please advise fork type and bracket type: Euro SMS Trima, Big BM or others when order.
Specification
- Capacity: 2500kg, 5000kg, 8000kg, 11000kg;
- Frame Width: 1200mm, 1500mm, 2000mm, 2400mm, 3000mm;
- Forks Length: 1200mm; 1400mm, 1600mm, 1800mm, 2000mm, 2400mm;
- Attachment: Euro, SMS Trima, Big BM or others.
- Other widths and fork lengths are available on request.
Type |
Class |
Width/mm |
SWL/kg |
Attachment |
Weight/kg |
T-2A-1200-2.5T-TJ-EURO |
2A |
1200 |
2500 |
EURO |
78 |
T-2A-1200-2.5T-TJ-SMS-C |
2A |
1200 |
2500 |
SMS |
88 |
T-2A-1200-2.5T-TJ-Vila/Valtra |
2A |
1200 |
2500 |
Vila/Valtra |
78 |
T-2A-1200-2.5T-TJ-Z602 |
2A |
1200 |
2500 |
TJ-Z602 |
82 |
T-3A-1500-5T-TJ-BIG BM |
3A |
1500 |
5000 |
BIG BM |
165 |
T-3A-1500-5T-TJ-C-BIG BM |
3A |
1500 |
5000 |
BIG BM |
204 |
T-3A-2000-5T-TJ-BIG BM |
3A |
2000 |
5000 |
BIG BM |
207 |
T-3A-2200-5T-TJ-Z602 |
3A |
2200 |
5000 |
Z602 |
189 |
T-4A-1500-12T-TJ-C-BIG BM |
4A |
1500 |
12000 |
BIG BM |
243 |
T-4A-1500-8T-TJ-BIG BM |
4A |
1500 |
8000 |
BIG BM |
198 |
T-4A-2000-8T-TJ-BIG BM |
4A |
2000 |
8000 |
BIG BM |
240 |
T-4A-2000-8T-TJ-C-BIG BM |
4A |
2000 |
8000 |
BIG BM |
271 |
T-4A-2200-8T-TJ-BIG BM |
4A |
2200 |
8000 |
BIG BM |
241 |
T-4A-2500-12T-TJ-BIG BM |
4A |
2500 |
12000 |
BIG BM |
360 |
T-4A-2500-12T-TJ-BM L150-180 |
4A |
2500 |
12000 |
BM L150-180 |
446 |
