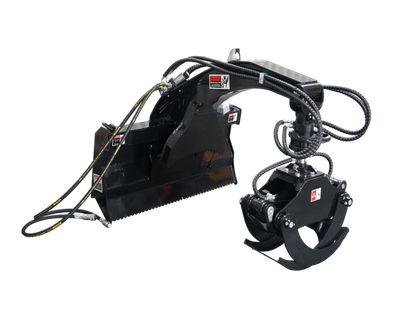

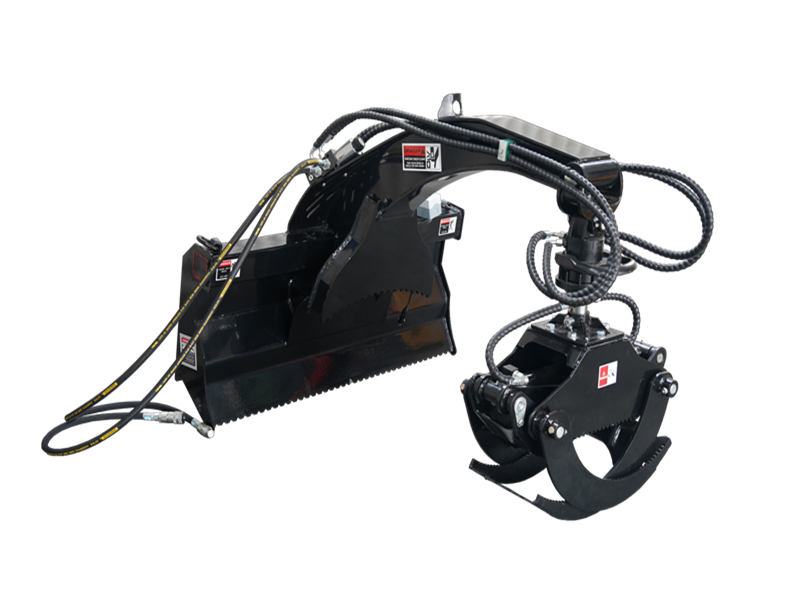

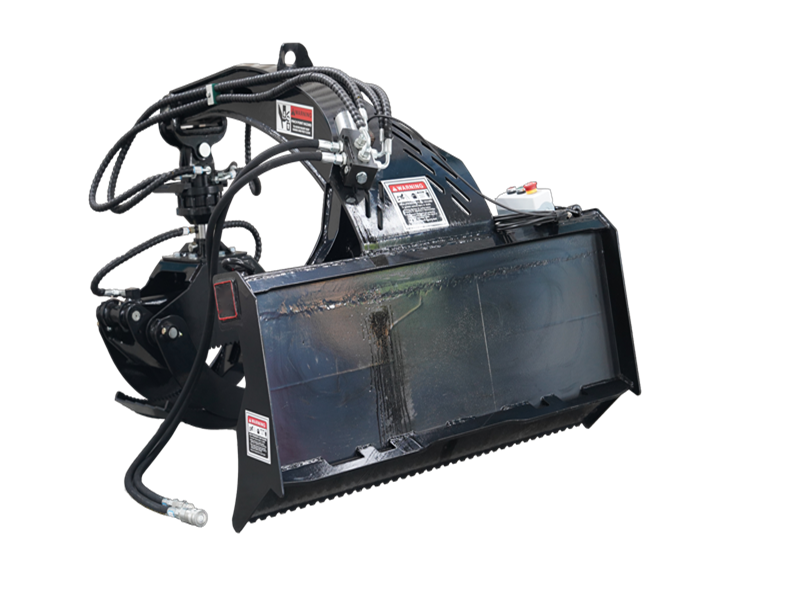

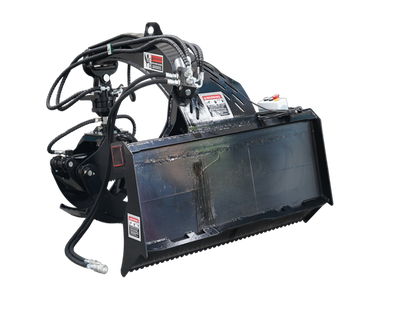

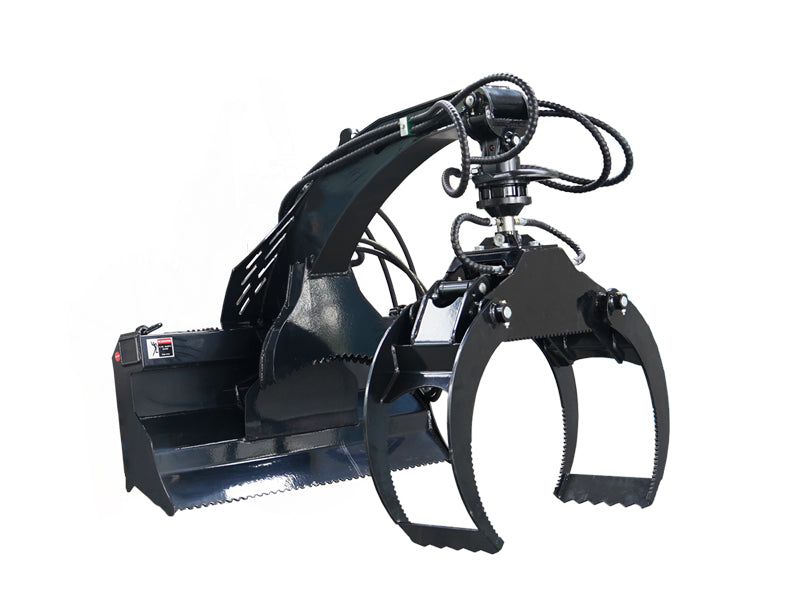

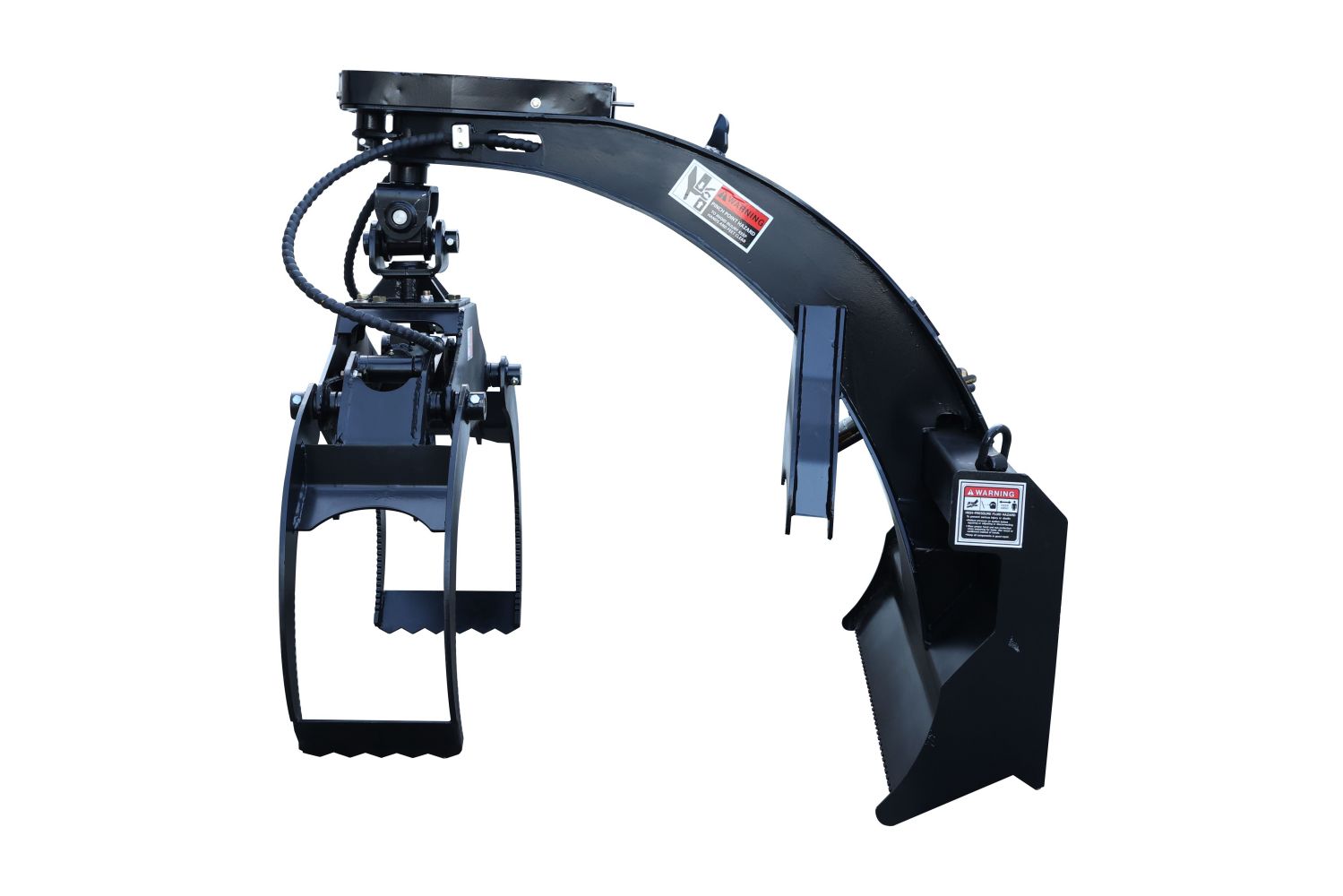

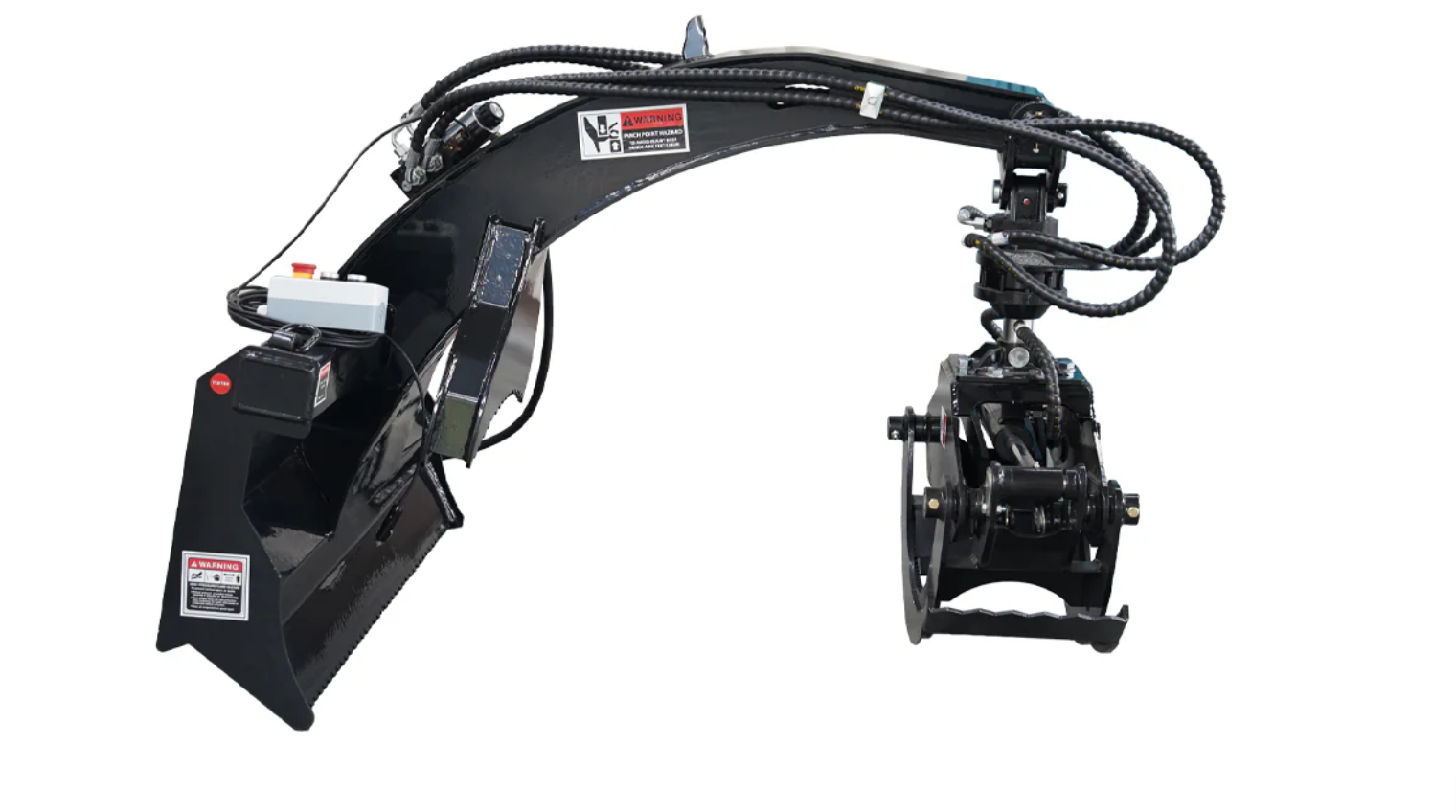

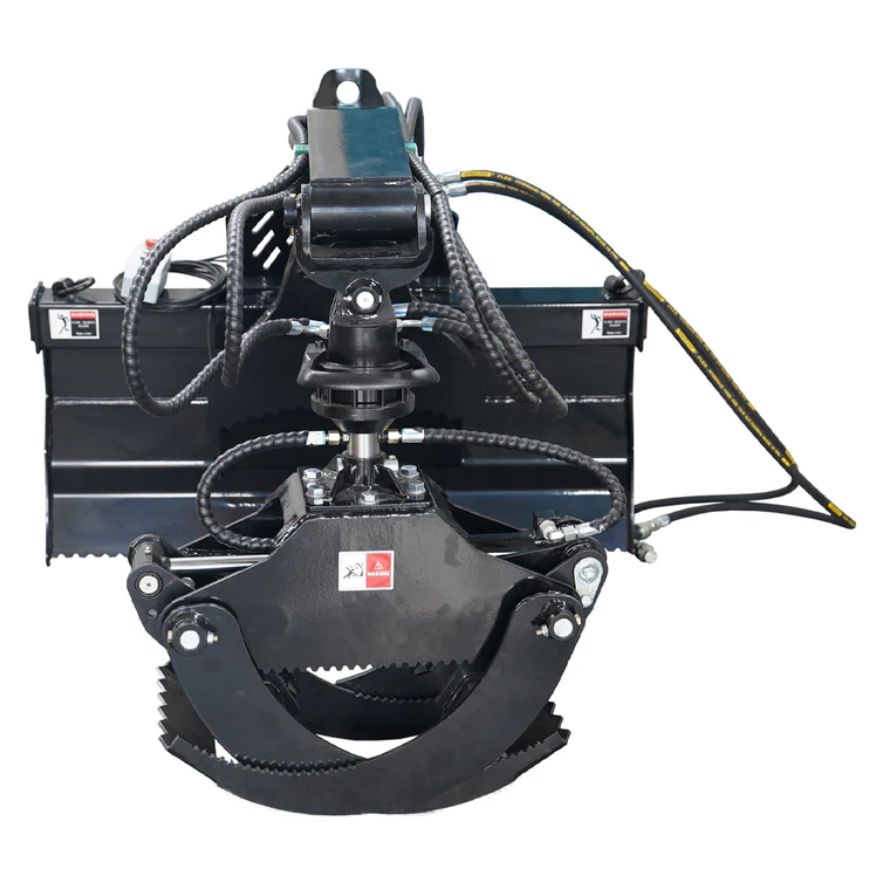

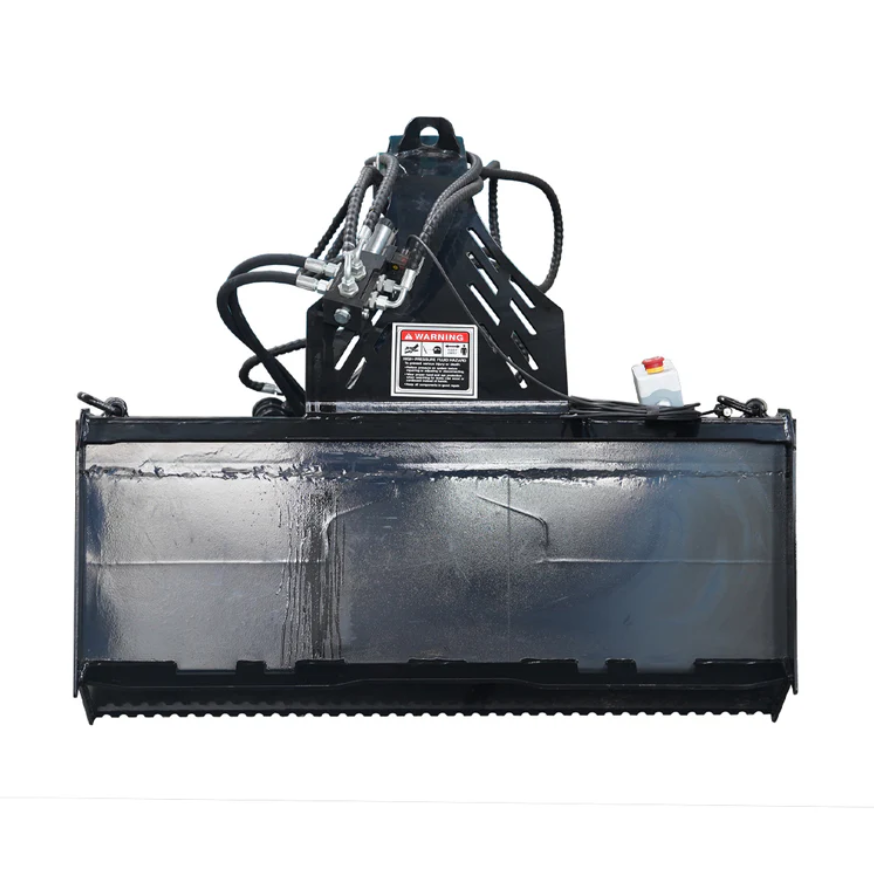

Skid Steer Log Grapple (S-LG1360(80-1220)-MP1220)

Skid Steer Log Grapple (S-LG1360(80-1220)-MP1220)

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Product Overview

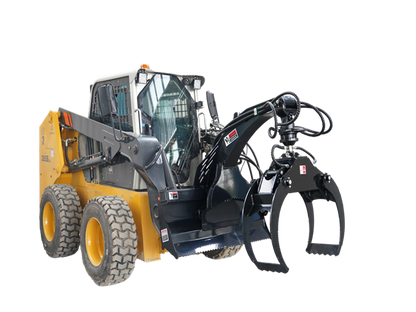

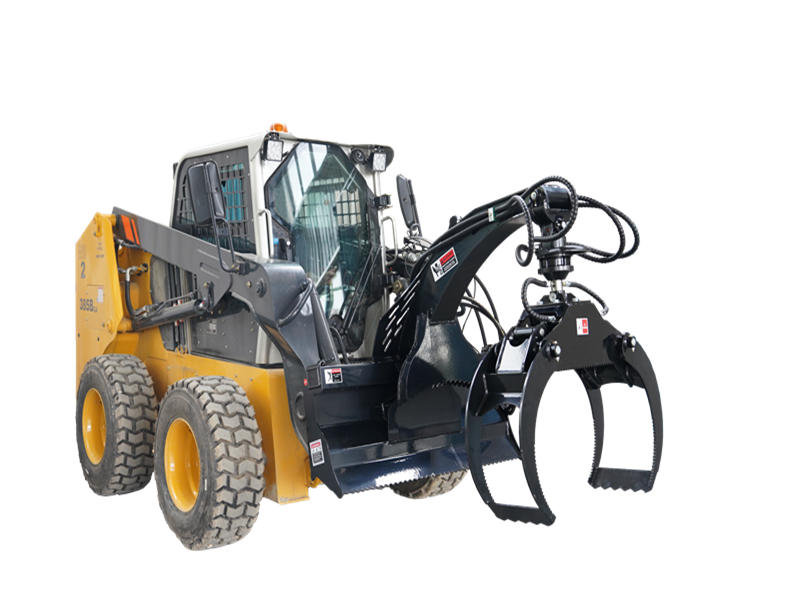

Skid steer squeezes into tight spaces and gets the job done efficiently with the ideal attachment for landscapers and tree service contractors who need hauling strength through narrow passages.



Features:

- Fits Universal Skid Steer Quick Attach
- Bypass Grapple
- Mounting Plate, Hoses and Couplings Included
- The grapple opens and closes with hydraulic, and the side to side also with hydraulic.



Specifications:


- Engine HP Range: 25-65
- Lift Capacity: 3,000 lb
- Rotator Rating: 6,750 lb
- Hydraulic Flow: 16 GPM
- Woring Pressure: 2900 PSI
- Grapple Opening: 3"- 48"
- Grapple Rotation: 360 °
- Clamp Force: 9400 lb

Type
S-LG1360(80-1220)-MP1220
S-LG450(80-1020)-MP600
S-LG450(80-1020)-MP910
Lift Capacity
3,000 lb (1360kg)
990 lb (450kg)
990 lb (450kg)
Recommended Hydraulic Flow
60 LPM
60 LPM
60 LPM
Operate Pressure
20 MPA
20 MPA
20 MPA
Grapple Opening
3"- 48"
3"- 40"
3"- 40"
Grapple Rotation
360°
360°
360°
Total Weight
597 lb
362 lb
430 lb
Mounting System
Universal Skidsteer Quick Attach Plate, Inner width 1220mm
Universal Mini Loader Quick Attach Plate, Inner width 600mm
Universal Mini Loader Quick Attach Plate, Inner width 910mm
