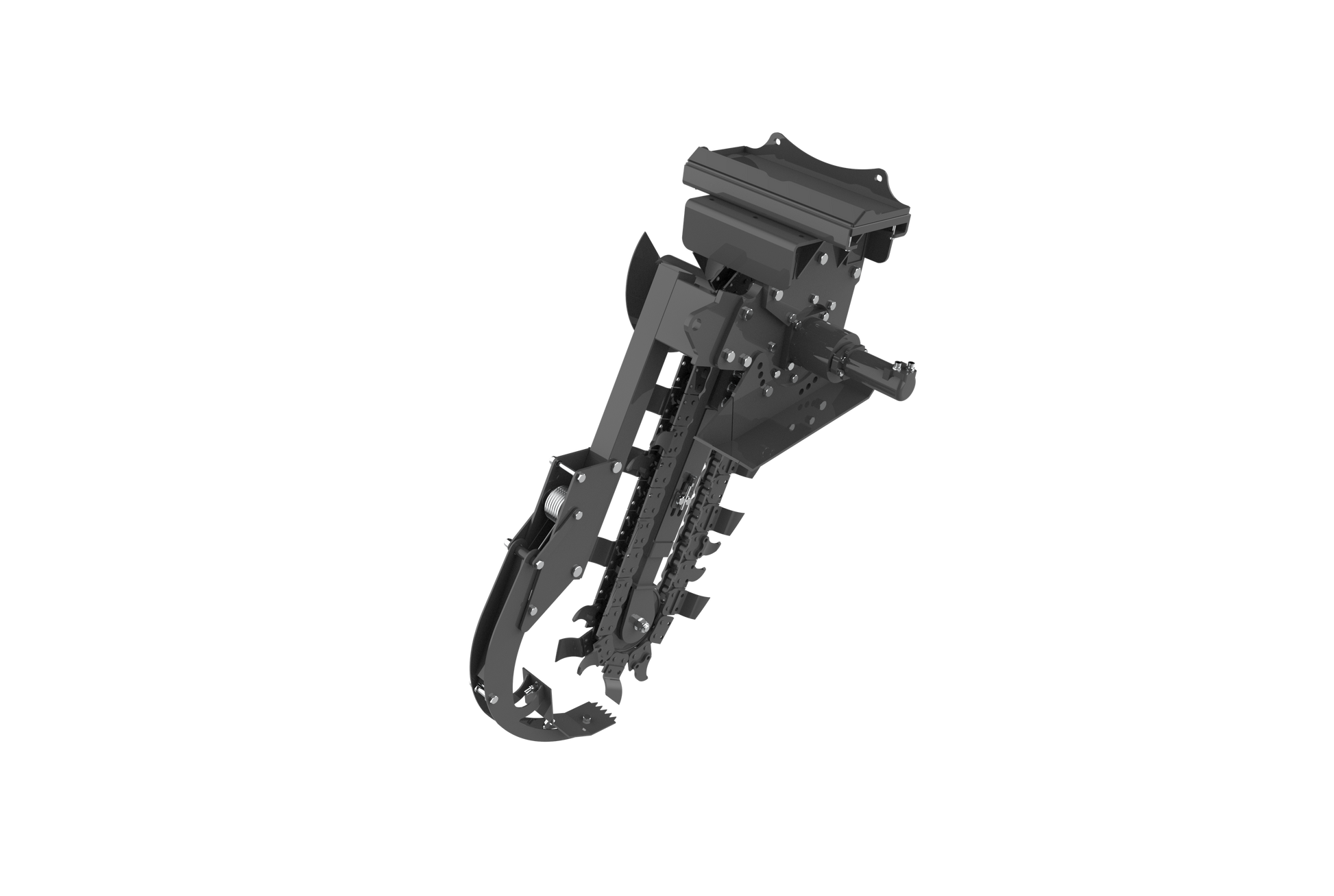

Trencher-Compact Skid Steer Attachment

The Trencher can be used for pipe laying for irrigation, underground power & communications, road repairs, general construction.

Skid Steer trencher features an adjustable depth control foot which ensures the operator trenches at a set depth at all times. Three different chain options are also available for trenching in different ground conditions from general earth, to rocky ground, concrete, asphalt, and even frozen ground.

Type: CS-TCR910 (36IN)-MP910
Dimension (WDH)/mm: 957×1436×1804
Cutting Width (DW)/mm: 150
Cutting Depth (Dk)/mm: 500/650/800/960
Hydraulic Flow/LPM: 75 - 115
Operating Pressure/MPa: 15 - 21
Weight/kg: 308
